64KWH Nissan Leaf Battery Pack Original CATL NCM 14.8V 180Ah Module 100% SOH Programmed Canbridge(the most advanced version)

0 reviews / Write a review

$6,486.00

Product Code:
Availability: 199

- +

Technical Specification:

Connection Type：4S1P

Pack Capacity:64KWH

Battery Cell Material Type:NCM

Nominal Voltage:355.2V

Unit cell Capacity:180Ah

Charging Voltage:403.2V

Discharging Cut-off Voltage:260V

Standard Charging Current:13.5A

Max. Charging Current:67.5A

Standard Discharge Current:13.5A

Max.Discharge Current:67.5A

Cycle Life(>80%): ≧2000 @25℃

Dimension:154*114*25cm

weight:360KGS

Warranty Period:3 years

You can also check our Youtube channel:

https://www.youtube.com/@ShirleyLiu-mg5jt

to view the episodes of the video:

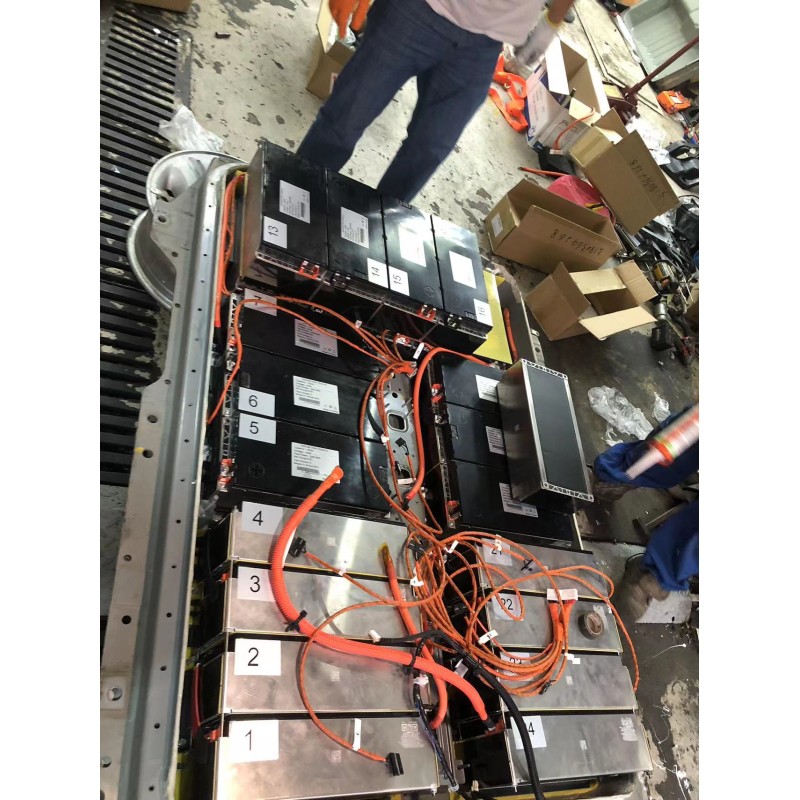

1.how our technicians assemble the Nissan Leaf battery pack;

2.how our technicians install the battery pack into the Nissan Leaf;

3.how our technicians connect the canbridge to the Nissan Leaf.

Product Feature

Mileage range after fully charged:

the mileage range of the 40KWH Nissan leaf battery pack can reach about 179miles-192miles

the mileage range of the 53KWH Nissan leaf battery pack can reach about 236miles-255miles

the mileage range of the 64KWH Nissan leaf battery pack can reach about 278miles-298miles

In fact,the mileage range also been influenced by these factors:

1.Whether the battery is fully charged;

2.Good driving habit is also very important;

3.The road condition;

4.How many years the car has been used;

5.The weight which the car load;

6.Environment and temperature.

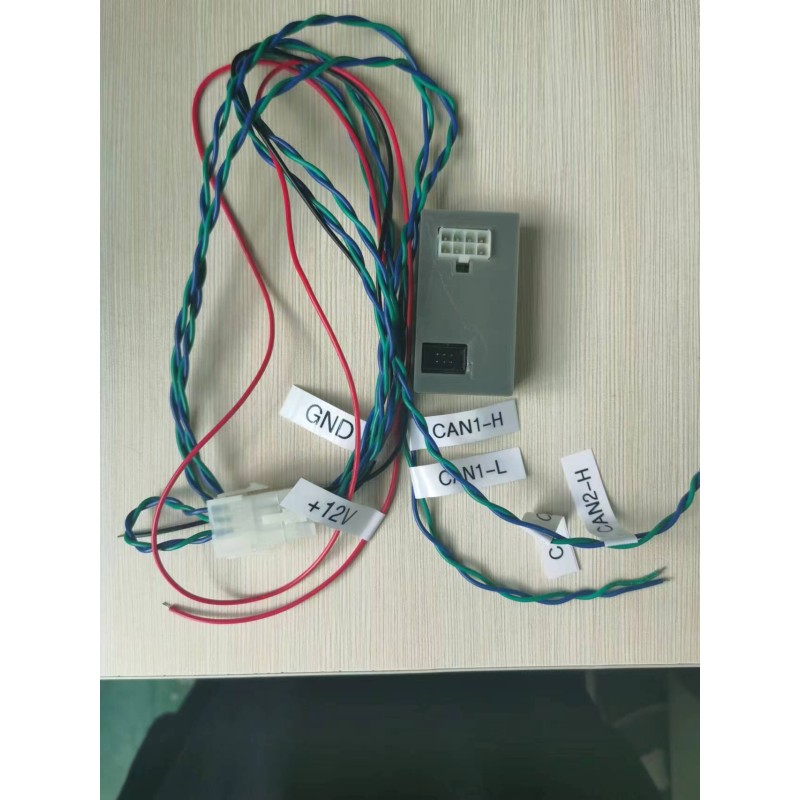

Powerful Canbridge：

We can provide powerful canbridge for Nissan Leaf battery pack.

Our canbridge is very advanced,after you have replaced the Nissan Leaf battery pack and then connected the canbridge to the Nissan

Leaf car,the dashboard of the Nissan Leaf car can show the correct mileage range on spot.

Note:

1.The size of our upgrade 40KWH Nissan Leaf battery pack is the same with the original Nissan Leaf battery pack

2.The height of our upgrade 53KWH or 64KWH Nissan Leaf battery pack is 2cm higher than the original Nissan Leaf battery pack,the width and the length is the same

Our Product Advantages

1.We assemble our upgraded Nissan Leaf battery pack with original CATL battery modules;

This kind of battery modules are small-sized,so they are very easy for heat dissipation,It is known to all that the design of the original Nissan Leaf battery pack is air-cooled.

2.The metal mounting bracket which fix the battery modules is light-weight,it can make our battery pack lighter than its equivalent competing products.

the net weight of our 40KWH Nissan Leaf battery pack is 272KGS

the net weight of our 53KWH Nissan Leaf battery pack is 369KGS

the net weight of our 64KWH Nissan Leaf battery pack is 369KGS

3.As for the wire harness,we wrap it with strong plastic tube,so it can not be damaged easily.

It is very friendly for those customers who just purchase the Nissan Leaf battery kit to assemble,

because we will mark the battery modules with number label,and we also mark the wire harness with number label,when the technicians do the assembly job,the technicians just insert the plug of the wire harness into the slot of the battery modules with the same number.

Product Testing

1.we test the voltage and internal resistance of the cells with internal resistance meter;

2.we also insert the insulating panel between the modules and put the insulating panel under the modules to keep it safe;

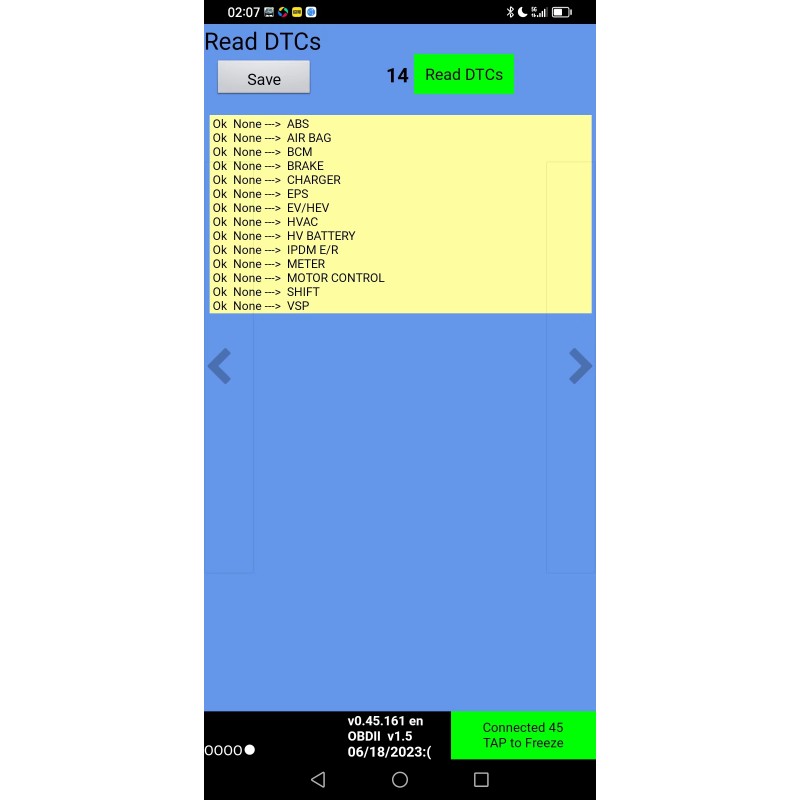

3.As for the Nissan Leaf battery pack,we will test it with the Leafspy pro,and we install the upgraded Nissan Leaf battery pack to the Nissan Leaf car to do the road test;

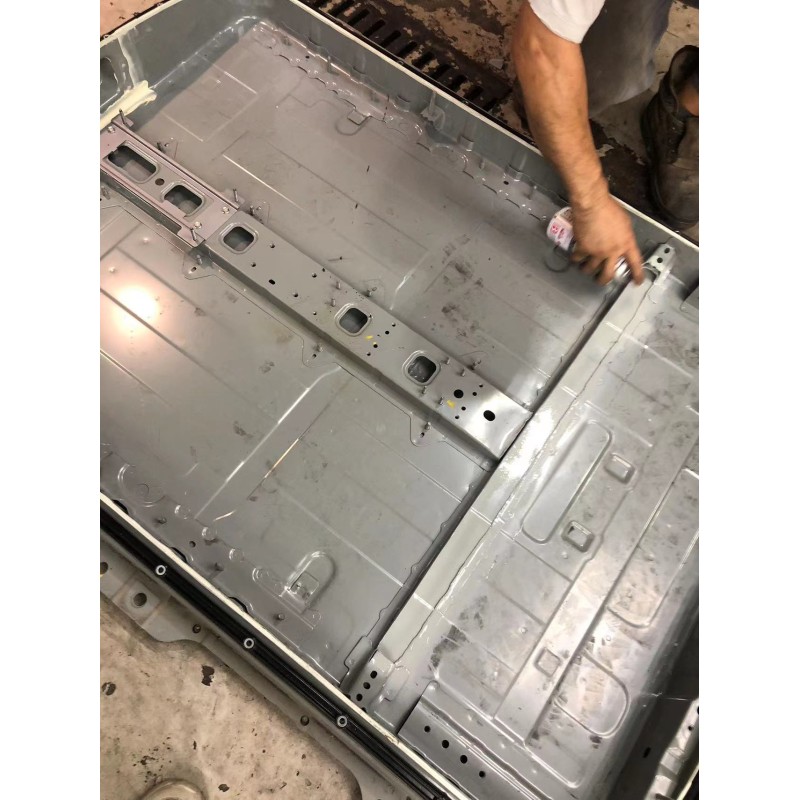

4.We spray the silicone sealant around the edge of the case to keep the battery pack water-proof.

Warranty

1.The warranty for the 40KWH battery pack is 2 years(60000 KM)

The warranty for the 53KWH and 64KWH battery pack is 3 years(80000 KM)

2.We will send the warranty card for the customer after they buy it.

3.Currently some local EV repair shops have cooperated with us,you can get free warranty service through this warranty card.

4.But for some areas,we have not found the partner at this time and can not provide direct warranty service.

If some issues of the battery pack quality itself,you can ask the technician in nearby EV repair shop to diagnose the problems and take pictures to keep the proof,we would pay for the cost for diagnose and repair by the proof pictures and repair receipt,but we are confident with the quality of our battery.

5.And our factory is with 10 years history.

Certification

1.The case and BMS of our upgraded Nissan Leaf battery pack is original.

2.The battery modules inside are brand new and from CATL.

3.They are with UL and CSA certificates which is filed in the certificating company.

4.The CATL is also the supplier of EV of other famous brands like Mercedes-Benz and BMW and Tesla.

Package

For some customers don't need the case and BMS to save the shipping cost

and they have the ability to assemble the Nissan Leaf battery pack themselves,

we can just provide them Nissan Leaf battery kits.

In fact,for European Union countries,USA,and some areas of Canada,

We can provide the DDP shipping service

It is the more cost-effective shipping method.

For the DDP shipping service,they can save much money to choose the Nissan Leaf battery kits instead of Nissan Leaf battery pack.

However for the CIF shipping service,they don't have much difference.

DDP shipping mean door to door service,it include the tariffs and custom,so you don't need to pay them again.You also don't need to clear the custom.

Item Gross Weight Package Size

40KWH Nissan Leaf battery pack 318KGS 160*126*45cm

53KWH Nissan Leaf battery pack 415KGS 160*126*45cm

64KWH Nissan Leaf battery pack 415KGS 160*126*45cm

40KWH Nissan Leaf battery kits 242KGS customized

53KWH Nissan Leaf battery kits 358KGS customized

64KWH Nissan Leaf battery kits 358KGS customized

Delivery

For complete Nissan Leaf battery pack:

1sets,the production time is 7 days

2-5 sets,the production time is 15days
